High reliability
KH Series
PRODUCT DESCRIPTION
Product Parameters
| Type | Features | Operating Temperature | Working Voltage | Capacitance | Endurance Hours |
|---|---|---|---|---|---|
| Radial | Long life 5000~10000hours | -40to+105℃ -25to+105℃ | 10~50V 160~450V | 6.8~3300uF 6.8~220uF | 5000 ~ 10000 |

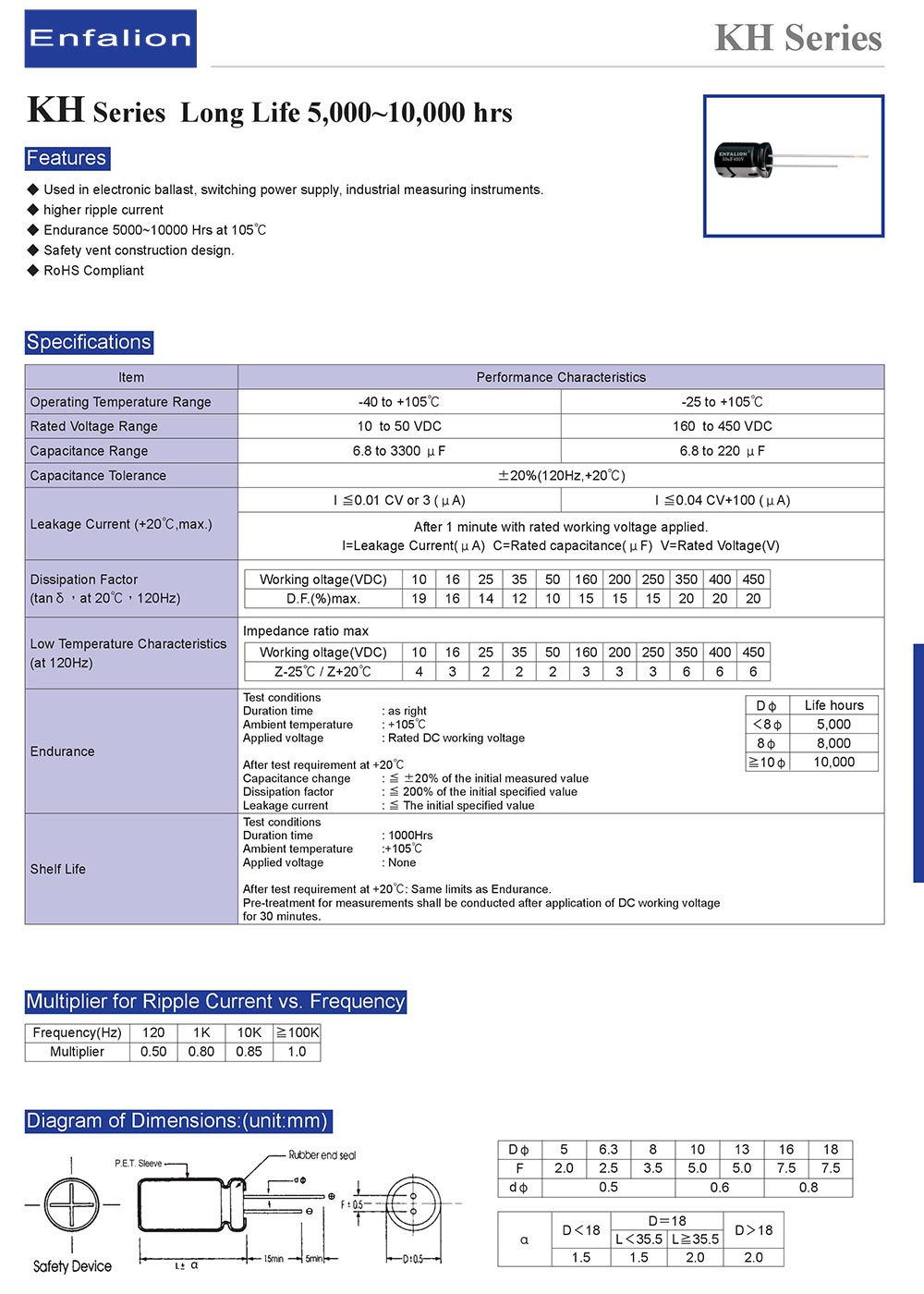

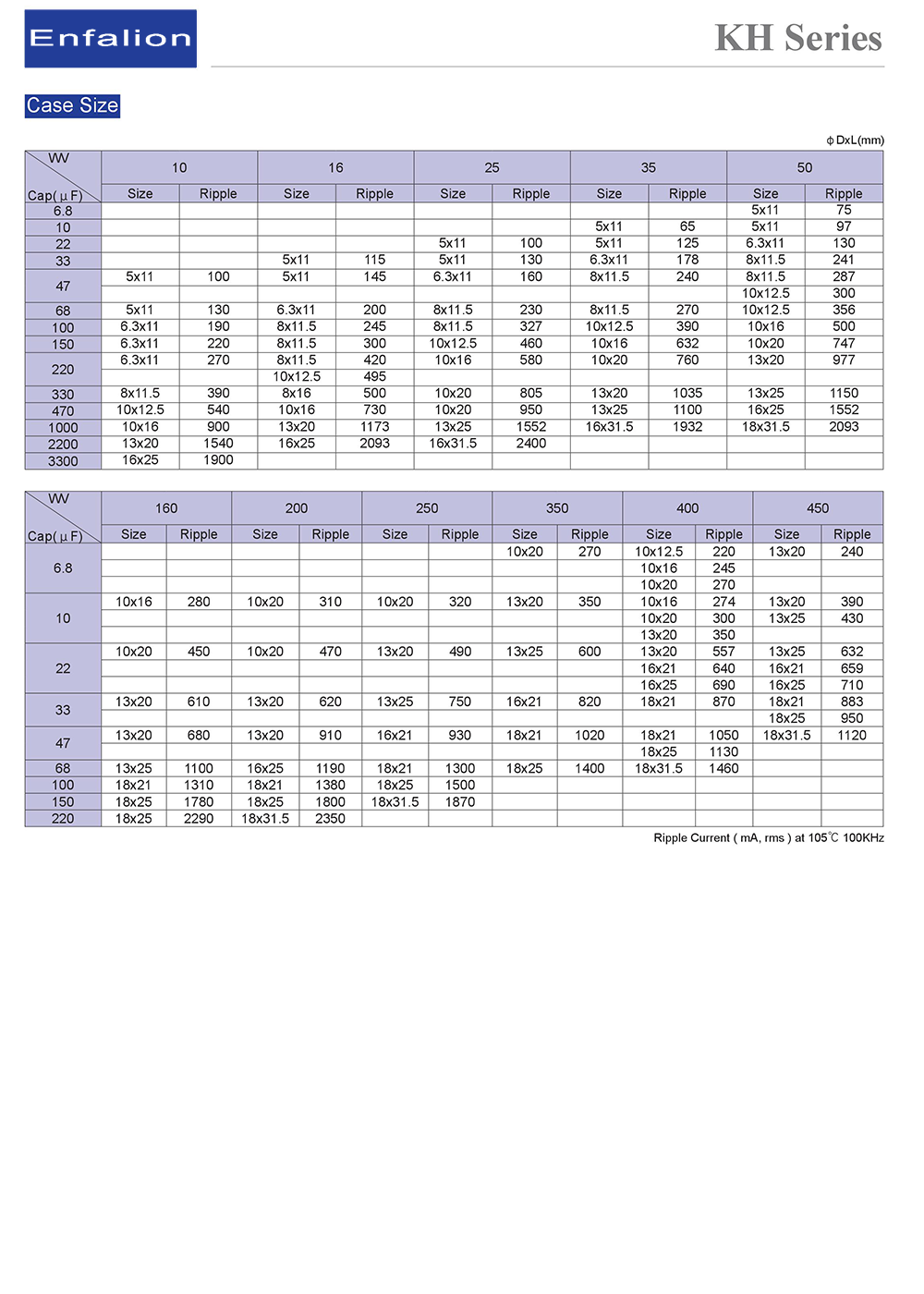

DETAILED PARAMETERS
